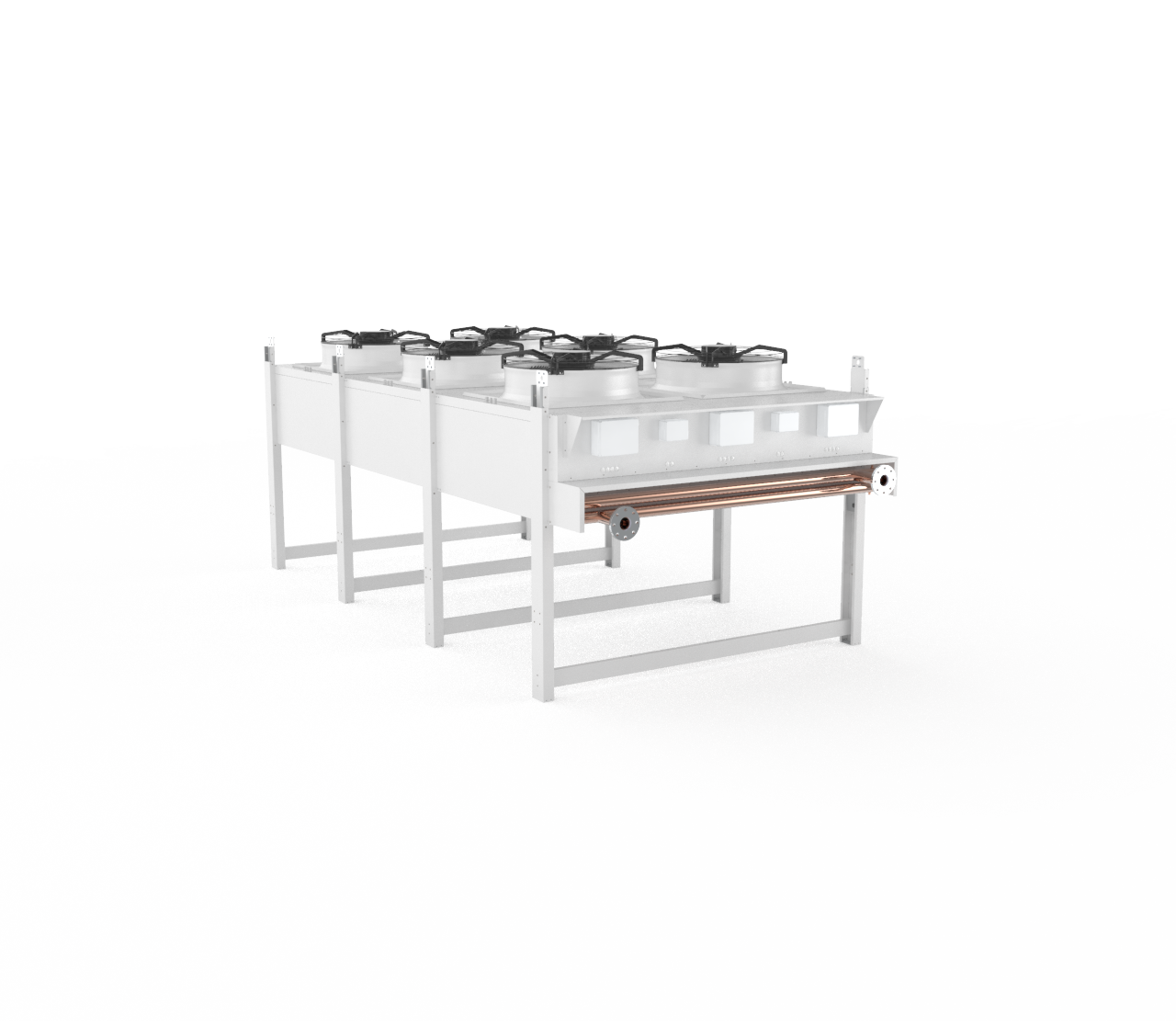

Flat dry coolers D-Series: Flat dry coolers with axial fans for outdoor use

Cooling capacity from 10 kW to 1215 kW

Flat dry coolers with axial fans are suitable for outdoor applications, using highly sustainable R718 refrigerant water and brines. Configurable for low noise levels and capacities to exactly match system requirements. Compared to cooling towers and wet systems, our flat dry coolers require low maintenance and are highly effective in preventing Legionella contamination.

FEATURES

Finned coil: Built with Ø12mm copper tubes and turbulent aluminium fins. Designed with ‘Floating pack system’, which allows the coil to be suspended to avoid leaks

Fans: Equipped as standard with EC fan motors with external rotor (380-480V III 50/60Hz) compliant with ErP Directive Ø450, 630, 800, 910 mm

Casing: Galvanised steel painted with epoxy-polyester, subjected to heat treatment at 180ºC giving it a high protection against corrosion even in extreme environmental conditions

Design pressure: PS=16bar PT=23bar
